This is Elk LIVE

The Bridge Specifications

Static and dynamic content editing

3.5 AND 6.3, really?
Yep, No adapters needed, just plug in your fav headphones!

Static and dynamic content editing

3.5 AND 6.3, really?
Yep, No adapters needed, just plug in your fav headphones!

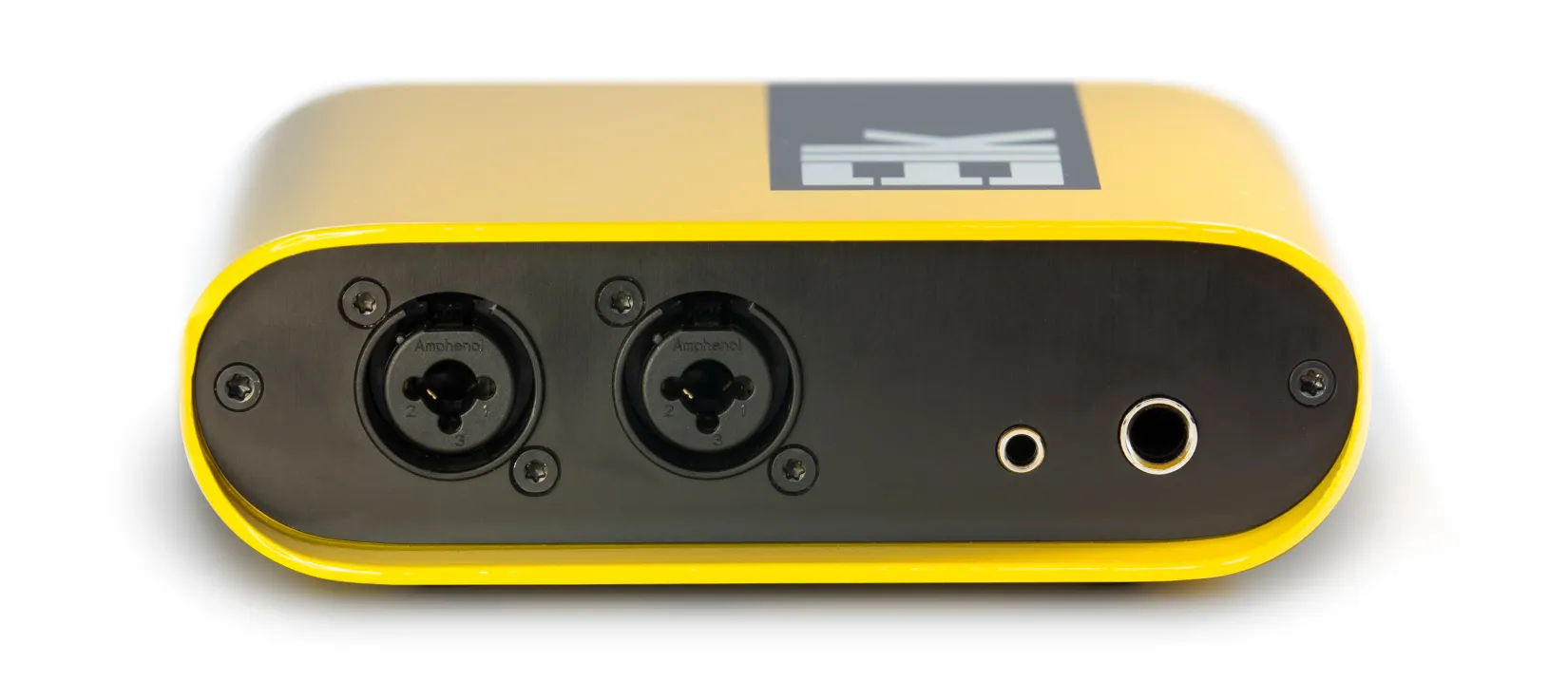

2 analog inputs (XLR / TRS combo connector)

  • Line (balanced and unbalanced +22dBu max input level)
  • Microphone preamp (-12dBu max input level)
  • Instrument (unbalanced on TRS/TS connector only +13dBu max input level)
  • Selectable 48V phantom power per port (XLR only)

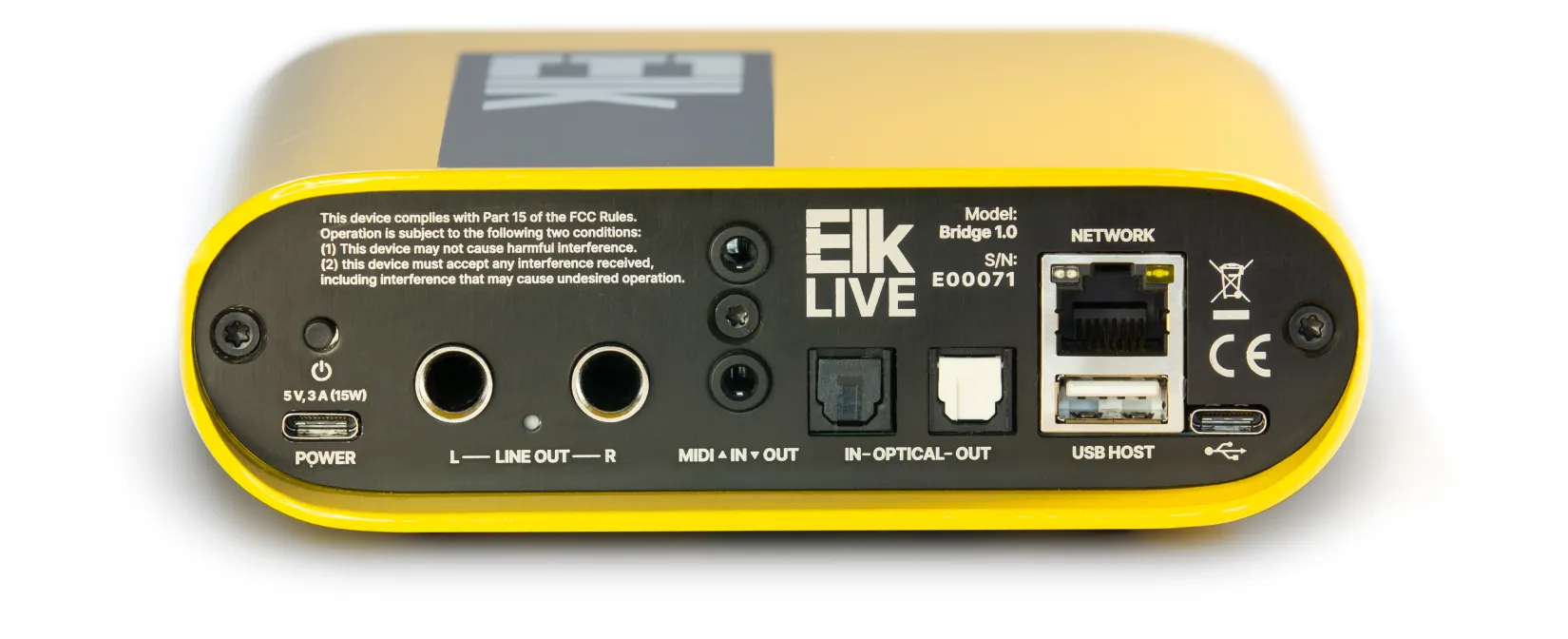

  • Digital IN/OUTPUT: ADAT, S/PDIF
  • USB class-compliant (UAC-2) Audio/MIDI device
  • A/D and D/A conversion 24-bit up to 192kHz
  • Network - Gigabit (1000BASE-T)
  • Power - 5 V, 3 A(15W) USB type C
  • Dimensions - 140x140x45mm
  • Weight - 483 gr
  • Audio OS: Elk Audio OS - Ultra Low-Latency Audio Operating System

4 analog outputs

  • 2 unbalanced 1/4" line outputs, +2 dBu maximum output level
  • Stereo headphone output (selectable 1/4" or 3,5mm), +4dBu maximum output level
Requirements for using Elk LIVE

Read more about how to test your internet connection
For optimal performance bandmates should be within a 1500 km radius. You can connect with musicians even further away, but you might not get that “in the same room” experience.

Steps to get started with Elk LIVE

Read our getting started guide

Ready to start your Elk LIVE experience?

🇺🇸 $340 🇪🇺 €370
Buy the Bridge
